| Design Features: |
|
Flanged Excellence: End connections flanged from 150# to 2500# for secure installations.
Adjust with Precision: Inclusion of adjusting ring for meticulous control over pressure settings.
Versatile Inlet Connections: Inlet connections available in both screwed male and female configurations.
Full Nozzle Design: Available in Screwed and Flanged options for efficient and reliable performance..
Standards Compliance: Flanges designed according to ANSI B 16.5 standards, with optional ISO PN Flanges.
Thermal Relief Ready: Suitable for Thermal Relief applications, enhancing safety in thermal stress scenarios.
Durable Stellite Components: Nozzle and Disc components stellited for enhanced durability and wear resistance.
Disc Options for Varied Seating: Choose between Metal to Metal or Metal to Soft Seat configurations based on specific requirements
|
| Construction: |
|
Body Materials: Carbon Steel, Stainless Steel, Cr Mo Steel, Low-temperature Steel, Nickel Copper Alloy, Alloy 20.
|
| Accessories: |
|
Balanced Bellows.
Test Gag.
Lifting Lever.
Steam Tracing Jacket.
|
| Full Lift, Full Nozzle: |
|
Suitable for Steam, Gas, or Liquid Service.
Sizes available from 1/2” to 1 ½” .
Flanged ANSI 150 to 2500
|

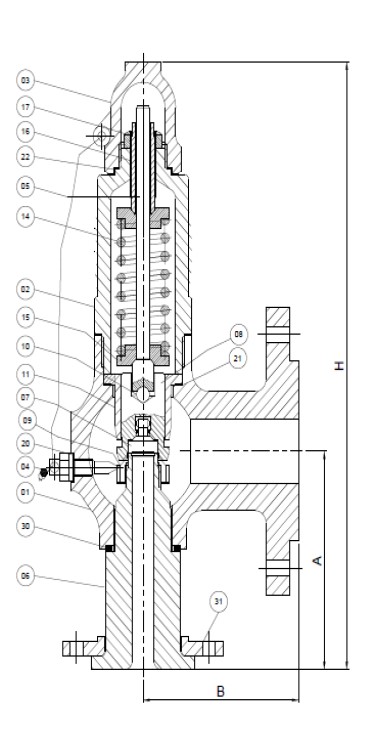

| Part List (Selected Items): |
|
Body , Bonnet , Cap ,Adjusting Ring Pin , Spindle , Nozzle , Disc , Disc Holder/ Piston , Adjusting Ring ,Ball , Guide ,Spring ,Spring Washer ,Adj. Screw ,Lock Nut , Set Screw Gasket ,Guide Gasket ,Cap Gasket, Cap Plug Gasket Inlet Flange CAP Plug, Test Gag , Nozzle Gasket.
|
