Makali Valves & Engineering Services

Series 76 API 520/526/527

Design Features:

Orifice and face-to-face dimensions according to API 526.

Adjustable ring for precise pressure adjustment.

Screwed Full Nozzle design.

Flanges per ANSI B 16.5, with optional ISO PN Flanges.

Stellited Nozzle and Disc for enhanced durability.

Seat options: Metal to Metal or Metal to Soft.

Construction:

Body Materials: Carbon Steel, Stainless Steel, Cr Mo Steel, Low-temperature Steel, Nickel Copper Alloy, Alloy 20.

Accessories:

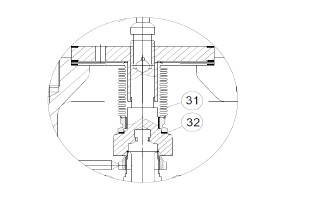

Balanced Bellows.

Test Gag.

Lifting Lever.

Steam Tracing Jacket.

Full Lift, Full Nozzle:

Suitable for Steam, Gas, or Liquid Service.

Sizes available from 1" to 10".

Flanged ANSI 150 to 1500.

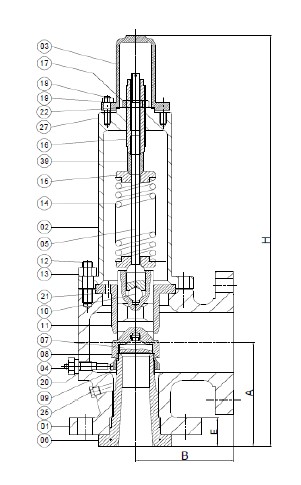

Part List (Selected Items):

Body, Bonnet, Cap, Adjusting Ring Pin, Spindle, Nozzle, Disc, Disc Holder/Piston, Adjusting Ring, Ball, Guide, Body-Bonnet Bolting Stud, Body-Bonnet Bolting Nut, Spring, Spring Washer, Adjusting Screw, Adjusting Screw Lock Nut, Cap-Bonnet Fastener, Set Screw Gasket, Guide Gasket, Cap Gasket, Plug Gasket, Cap Plug, Drain Plug, Test Gag, Bellow, Bellow Gasket.

Part List Materials:

Materials vary based on the temperature range: Carbon Steel, Stainless Steel, Corrosive Service, Cr Mo Steel, Low Temperature.

Sizes and Dimensions (Sample):

Orifice Flanges ANSI RF.
Max Working Pressure varies by size and class.
Dimensions include A, B, E, H.
Approximate Weight varies by size.

Applications:

Suitable for a wide range of temperatures and pressures.
Versatile applications in industries such as oil and gas, chemical processing, etc.

Additional Information:

Considerations for Cold Differential Test Pressure (CDTP).
Spring materials and material temperature range details.
Locking arrangement
Parts materials specified for different temperature ranges.
